Threads: What you need to know to get the right parts

Threads encode a lot of intent in a tiny callout: nominal size, pitch/TPI, profile, series, tolerance/fit, handedness, length/engagement, and sometimes sealing. Getting any of these wrong can turn a purchase order into scrap (e.g., ordering BSPP when the mating part is NPTF, or specifying 3A for a tapped hole).

Werk24 parses, normalizes, and validates thread information across ISO and ASME ecosystems and returns a consistent JSON schema—independent of language (we support DE, EN, ES, NL, JA, IT; others can be added within a week with a native mechanical engineer).

Why threads matter (business impact)

Tooling & lead times: UNF vs UNC, M‑fine vs M‑coarse, NPT vs BSPP all drive tooling choice and setup.
Interchangeability: Wrong fit class (e.g., 3B instead of 2B, 6g instead of 6H) kills compatibility.
Sealing: Tapered vs parallel threads change whether you need PTFE/anaerobic sealant or an O‑ring/washer.
Quality costs: Rework on threads is rarely economical; early detection prevents NCRs and delayed RFQs.

The fields you must capture

Family / series (Metric, UN/UNF/UNC/UNEF, NPT/NPTF, BSPP/BSPT, etc.)
Nominal size (mm or inch)
Pitch (mm) or TPI (threads per inch)
Profile / form (60° ISO/UN, 55° Whitworth, 29° Acme, 30° Trapezoidal, Square, Buttress, Round)
Tolerance / fit class (Metric: 6H/6g…; UN: 1A/1B/2A/2B/3A/3B)
Hand (RH/LH) and starts (single/multi‑start)
Threaded length / engagement (e.g., “12 DEEP”, “THRU”)
Location (internal/external)
Sealing mode (taper seal vs gasket/O‑ring)

Werk24 extracts these explicitly and flags assumptions (e.g., omitted pitch → coarse series) so you can review.

Quick reference: common thread families

Family	Typical callout	Unit	Sealing	Notes
Metric ISO	`M10×1.5‑6H` (int.), `M10×1.5‑6g` (ext.)	mm	Mechanical	60° profile. Coarse/fine series per ISO 261. H (internal), g/h (external).
Unified (UN)	`3/8‑24 UNF‑2A`, `1/4‑20 UNC‑2B`	inch	Mechanical	60° profile. UNC/UNF/UNEF/UNS series. A = external, B = internal. Classes 1 (loose) → 3 (tight).
NPT / NPTF	`1/4‑18 NPTF`	inch	Taper seal	60° profile, taper 1:16 (~3/4" per foot). NPTF is “dryseal” (no sealant).
BSPP (G)	`G 1/4`	inch	Gasket/O‑ring	55° Whitworth profile, parallel thread.
BSPT (R/Rp/Rc)	`R 1/4`, `Rp 1/4`, `Rc 1/4`	inch	Taper (R/Rc) or gasket (Rp)	55° Whitworth. R = external tapered, Rc = internal tapered, Rp = internal parallel.
Acme / Trapezoidal	`1″‑8 Acme‑2G`, `Tr20×4`	inch/mm	Mechanical	Power transmission; 29° (Acme) / 30° (Tr). Multi‑start often used.
Square / Buttress / Round	varies	inch/mm	Mechanical	Specialty forms for load direction, dirt resistance, etc.

Tip: Pipe threads (NPT/NPTF vs BSPP/BSPT) are not interchangeable: different profile angle, pitch series, and sealing mode.

Reading callouts (cheat‑sheet)

Metric (ISO): M<Ø> × <pitch> – <tolerance> [LH] [length]
- Examples: M10×1.5‑6H (internal), M12×1.75‑6g RH 12 DEEP (external), M20×2‑6H LH (left‑hand).
Unified (ASME): <inch‑Ø>‑<TPI> <series>‑<class><A/B> [LH] [length]
- Examples: 3/8‑24 UNF‑2A, 1/4‑20 UNC‑2B LH 0.4 DEEP.
Pipe:
- NPT/NPTF: <NPS>‑<TPI> NPT[F] → tapered seal (e.g., 1/8‑27 NPTF).
- BSP: G <size> (parallel), R <size>/Rc <size> (tapered ext./int.), Rp <size> (parallel internal).

If pitch/TPI is omitted, Werk24 infers the standard coarse value and marks the field as assumed.

Tolerance & fit classes

System	Internal (female)	External (male)	Typical use
Metric ISO	6H common (4H/5H for tighter, 7H for looser)	6g common (4g/5g tighter, 8g looser)	General machine construction
Unified	2B common (1B loose, 3B tight)	2A common (1A loose, 3A tight)	General → precision assemblies

Mapping cues: …H almost always internal metric; …g/h external metric. In UN, suffix A = external, B = internal.

Internal vs external & placement on the part

External threads (studs, shafts) vs Internal threads (tapped holes, nuts). Placement affects:

Chamfers & run‑outs, undercuts/reliefs
Minimum engagement length
Surface finish requirements in the lead‑in

Visuals (for quick training):

External Threads Diagram of an external thread callout highlighting major diameter, pitch, and chamfer details

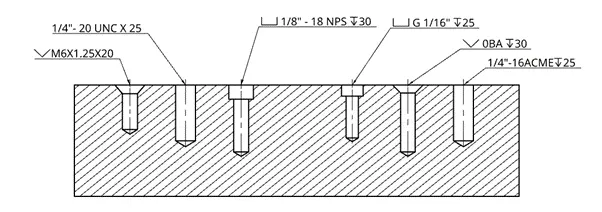

Internal Threads Cross-section of a tapped hole showing internal thread designation and depth

Helix direction (handedness)

Most threads are right‑hand (RH): clockwise rotation advances away from you. Left‑hand (LH) is used for reverse‑load or anti‑loosening applications. Callouts usually include LH when left‑hand; absence implies RH.

Graphic comparing right-hand and left-hand thread rotation directions on a fastener

Common pitfalls (and how we guard against them)

BSP vs NPT with the same nominal size → we check profile angle and expected pitch series.
Omitted pitch on metric → we infer coarse/fine from size but flag as assumed.
Class vs location mismatch (e.g., …H on an external callout) → flagged for review.
Through vs blind ambiguity → we read context words like THRU, DEPTH, MIN, MAX.
Multi‑start threads (e.g., Tr20×4(P2)) → explicit starts and lead handling.
